Our connector clamps are a simple solution for combining a terminal block with a strain relief. The terminal is pressed firmly into the bracket, which is then pressed into pre-drilled holes in a chassis or sheet. Particularly suitable for lighting fixtures and appliance boxes.

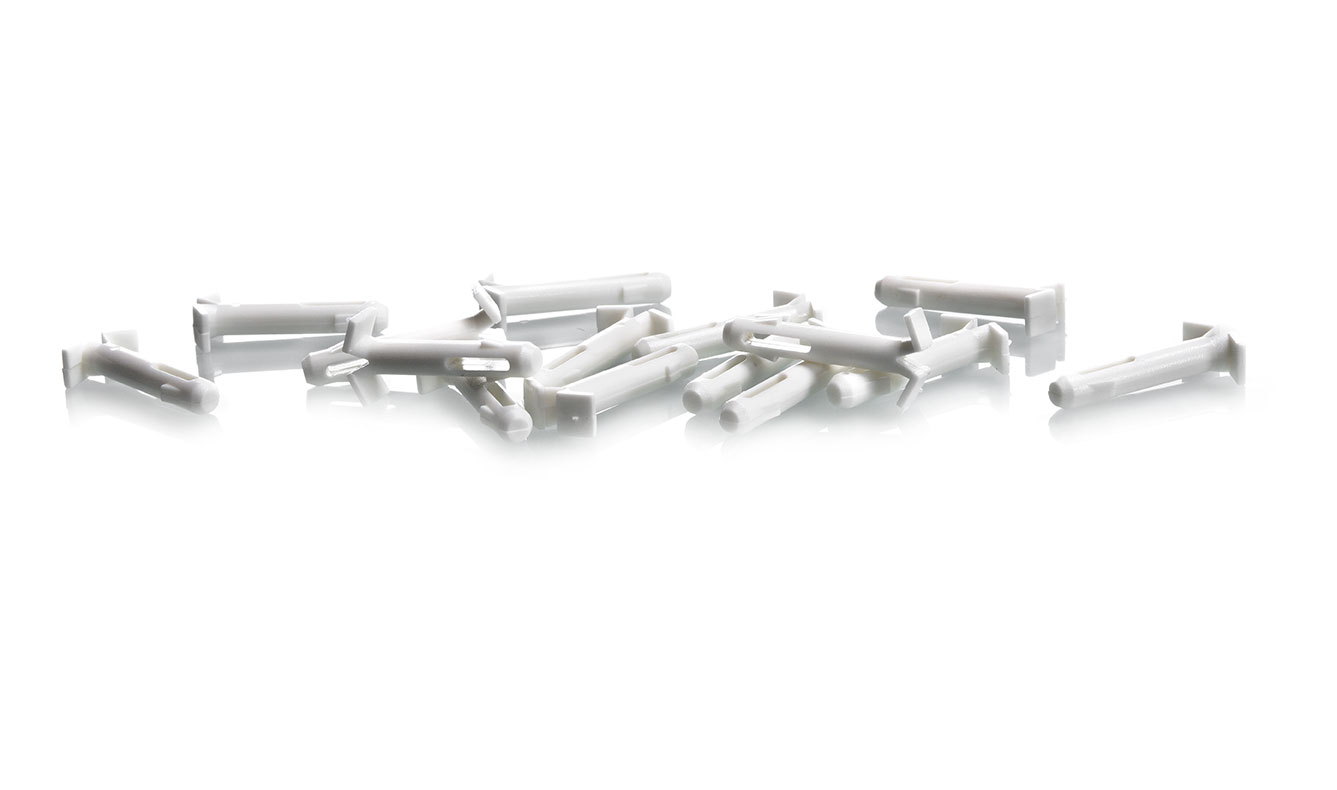

Push-in fixing pins are used for fitting our terminal blocks to a panel or chassi with a maximum thickness of 1mm. The fixing pin can be pushed in both from the bottom of the panel or from the top of the terminal block and is an easy and simple alternative when screws, rivets or other conductive materials can't be used.

Cable grips are used together with our terminal blocks and are designed to prevent wires from reaching uninsulated surfaces. Cable grips makes it easier to see where a wire is connected and creates a nice and neat connection point. Supplied in 12-pole strips that easilly breaks off into wanted number of poles.

A terminal block lid is a simple and easy-to-fit touch cover for your terminal block. The terminal cover is attached with a light pressure and held inplace with a snap-on attachment. The standard color is white, but we can also deliver it in black on request.

The HCL-series of jumpers fits our terminal blocks, allows cross-connection short circuit between poles and saves assembly time compared to jumper wires. The conductive material is nickelplated brass with insulation in polyamide. Supplied as 2, 3, 4 and 12-pole strips with a pitch from 8 to 15mm.

Our markingstrips , which fit all of Helags own connection terminals and is mounted on top of the terminal are made in white Polysteren
The marking is heat-sealed and can withstand the abrasion test and is UV-resistant
It is available in standard markings or as a completely customized solution
